UAD2next - Debug & Trace All-Rounder

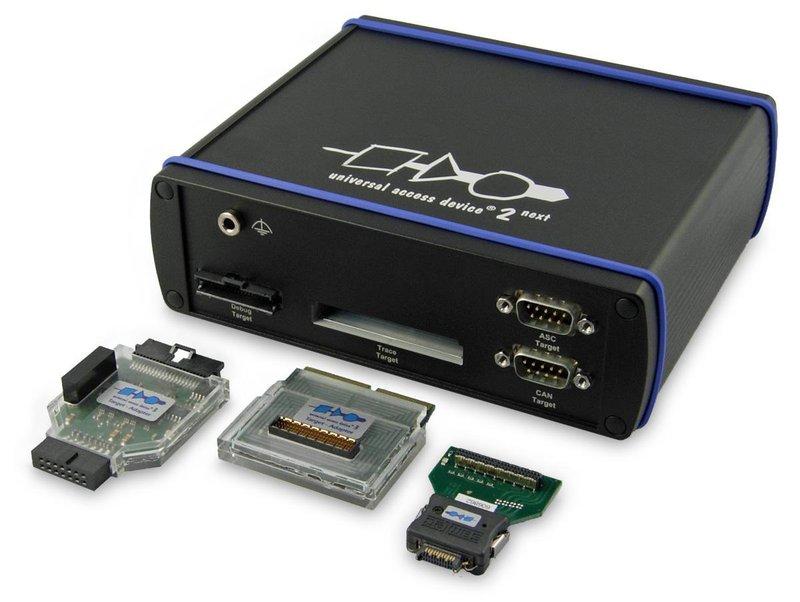

The UAD2next (Universal Access Device 2next) is the all-round device for debugging and trace in PLS's Universal Access Device family. It complements the UDE® Universal Debug Engine with powerful, flexible and robust communication to all supported 32-bit and 64-bit microcontrollers and embedded processors.

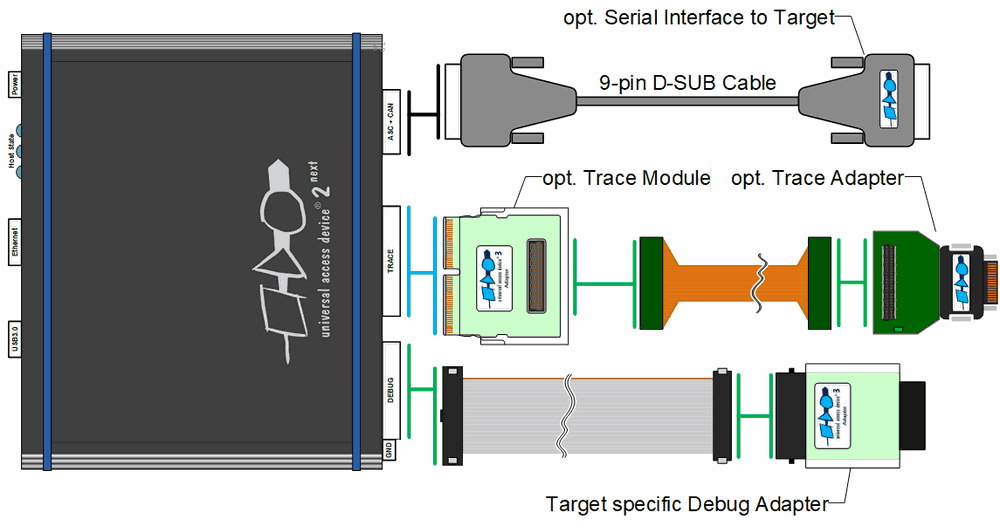

Combined with the proven debug adapter series from the Universal Access Device family, the UAD2next enables access to the target device via a wide range of debug interfaces and offers state-of-the-art, future-proof debugging and programming capabilities, even for the latest multicore SoCs.
The UAD2next can be extended by optional Trace Modules that support the various trace interfaces of the supported devices. This makes it the perfect choice for efficient debugging, testing, and system-level analysis.
With additional CAN and serial interfaces providing an alternative communication channel to the target device, the UAD2next facilitates debug access, programming, and CAN communication analysis via functional interfaces.
The UAD2next is optimized for high-speed debug communication between the UDE® running on your PC and the target system.
- Target specific debug adapters ensure flexible and reliable target access
- High-speed debug access with up to 160 MHz shift clock
- I/O voltage 1.65V – 5.5V
- Galvanically isolated debug adapters (RF coupler technology) with 1,000 VRMS isolation available
- Longer distances between UAD2next and target device, up to 0.5 m possible, 2.0 m on request
- Connectors for ASC and CAN/CAN FD* with galvanic isolation up to 1,000 VRMS
* CAN FD available upon request
- DAP, MiniDAP, SWD, JTAG, cJTAG, OnCE, H-UDI
- DAP over CAN Physical Layer (DXCPL)
- SPD (Single Pin DAP) via CAN
- ASC
- CAN
- USB3 for connecting UAD2next to the PC
- Gigabit Ethernet
- Supported operating systems: Windows® 10 64-bit or Windows®11 64-bit
- CAN bus D-Sub male connector (CiA pin assignment) as debugging communication channel to selected microcontroller families
- Continuous trace of CAN bus messages
- CAN bus analyzing may run as background task of debug communication
Special Adapters and Extenstion Modules
The UAD2next Range Extender increases the distance between the Universal Access Device 2next (UAD2next) and the target system by up to two meters. This enables the UAD2next to be used in test environments where larger distances must be bridged between the debug access device and the device under test.
- Applicable for target access using a Universal Access Device 2next (UAD2next)
- Maximum distance that can be bridged between UAD2next and target system: 2 meters
- Target-independent; Can be combined with any standard Debug Adapter
- Can be combined with any galvanic isolated Debug Adapter
- Small footprint comparable to a standard Debug Adapter: 53 x 36 mm (L x W)
- Easy-to-use; Handling completely transparent to the user, no additional setup steps are needed
- Robust against electromagnetic interference through differential signal transmission between Range Extender and UAD2next
For trace based debugging, measurement and system-level analysis the UAD2next can be extended with target specific trace modules.
- Easy mounting plug-in modules for a wide range of trace interface
- AURIX and PowerArchitecture Aurora trace connector (up to 2 lanes)
- Samtec ERF8 HS22 ASP-137969-01
- Samtec ERF8 HS34 ASP-137973-01
- Samtec ERF8 HS40 ASP-133811-01
- Additional customer specific trace connector
- Easy mounting plug-in modules for a wide range of trace interface
- Up to 12-bit parallel trace.
- 2 Lane serial trace for up to 1.25 GBit/s.
- 512 MBytes internal trace memory.
- Ready for Arm CoreSight ETM, STM, ITM, PTM, Xilinx FTM, for NEXUS class 3 parallel / serial AURORA trace, HSSTP AURORA trace and for Infineon AURIX MCDS.
Specifications
| Application purpose | Basic debugging and remote debugging, Trace based debugging and measurement |
|---|---|
| Supported debug interfaces |
JTAG, cJTAG, DAP, DAP2, SPD (Single Pin DAP), NEXUS, SWD, LPD with up to 160 MHz 1.6 V - 5.5 V IO-voltage (0.8 V - 3.3 V on request) |
| Addl. communication channel support | CAN/CAN FD, DXCPL (DAP over CAN Physical Layer), ASC via RS232 SUB-D9 (male), CAN connector (CiA pin assignment) |
| Trace support |
Arm CoreSight™ ETM, STM, ITM, PTM, FTM, NEXUS, AURIX and TriCore MCDS Plug-in trace module for AURIX and PowerArchitecture AURORA, up to 2 lanes @ 1.25 Gbit/s Plug-in parallel trace module, up to 12 bit, up to 250 Mbps, 1.6 V - 5.5 V IO-voltage NEXUS, AURIX and TriCore MCDS, CoreSight™ on-Chip trace |
| Trace memory | 512 MByte |
| Other features |
Build-in ESD protection Galvanic isolated target interfaces as an option Ground socket |
| Communciation to host PC | USB3, Gigabit-Ethernet |
| Dimensions (W x D x H) |
17 x 14.5 x 5.5 cm 6.7 x 5,7 x 2.2 in |
| Housing material | Aluminum |
